30W MAX Raycus And JPT Fiber Laser Marking Machine With 200-200mm Working Table

30W MAX Raycus And JPT Fiber Laser Marking Machine With 200-200mm Working Table 6

1. Technical Parameter

ModelSP-F30
Laser power30W(20W/50W optional)
Working Area200*200mm(150*150mm or 300*300mm optional)
Cooling ModeAir Cooling
Laser Wavelength10.64 um
Frequency of pulse20-100 kHz
Marking Depth≤0.3 mm
Marking Speed≤8000 mm/s
Marking Lines1-10 lines
Minimum Line Width0.01 mm
Minimum Character0.15 mm
Repeatability Accuracy±0.002 mm
Resolution Ratio0.1 mm
Marking ContentText, pattern, date, bar code, etc
Operation SystemMicrosoft Windows XP or Windows 2000, WIN 7, WIN8, WIN 10
Control SoftwareEZCAD ENGLISH Control Software
Graphic Format SupportedBMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc.
Unit Power≤0.9 KW
Operation Temperature5°C-40°C
Relative Moisture≤ 90%, no fog
Dimensions(L*W*H)76x75x 43 cm
Power supply requirements 220 V or 110V
Weight 60KG
Warranty24 months

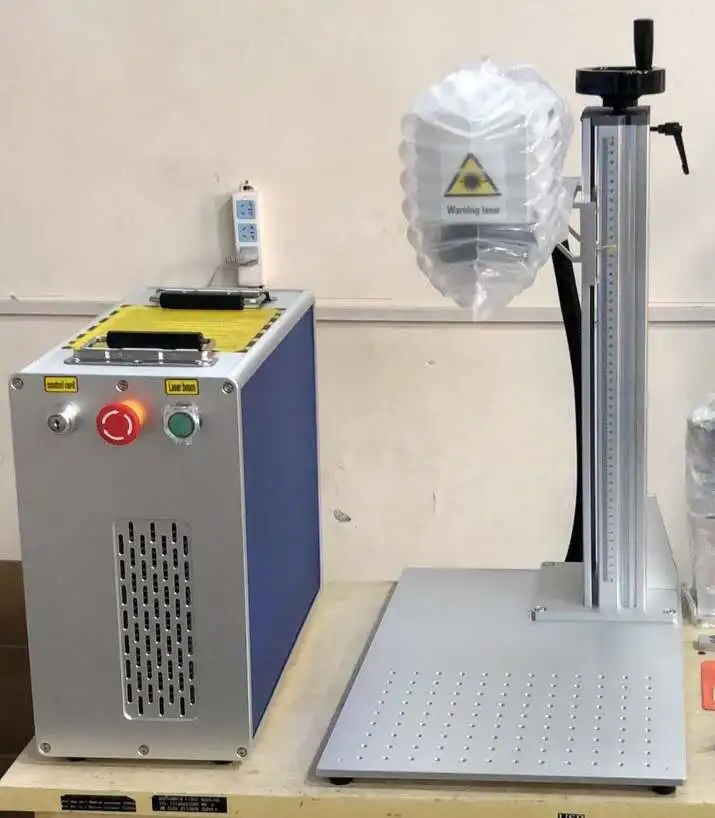

2. Photos

30W MAX Raycus And JPT Fiber Laser Marking Machine With 200-200mm Working Table 730W MAX Raycus And JPT Fiber Laser Marking Machine With 200-200mm Working Table 830W MAX Raycus And JPT Fiber Laser Marking Machine With 200-200mm Working Table 930W MAX Raycus And JPT Fiber Laser Marking Machine With 200-200mm Working Table 1030W MAX Raycus And JPT Fiber Laser Marking Machine With 200-200mm Working Table 1130W MAX Raycus And JPT Fiber Laser Marking Machine With 200-200mm Working Table 1230W MAX Raycus And JPT Fiber Laser Marking Machine With 200-200mm Working Table 1330W MAX Raycus And JPT Fiber Laser Marking Machine With 200-200mm Working Table 1430W MAX Raycus And JPT Fiber Laser Marking Machine With 200-200mm Working Table 1530W MAX Raycus And JPT Fiber Laser Marking Machine With 200-200mm Working Table 16

3. ACCESSORIES

1. Flash driver / u disk

2. Ruler

3. Ground wire

4. Power cable

5. Foot Pader / switch

6. key switch/laser switch

7. Scanner power switch

8. Emergency switch

9. Laser Power Adjust

10. Hexagon wrench

4. SAMPLE

30W MAX Raycus And JPT Fiber Laser Marking Machine With 200-200mm Working Table 1730W MAX Raycus And JPT Fiber Laser Marking Machine With 200-200mm Working Table 1830W MAX Raycus And JPT Fiber Laser Marking Machine With 200-200mm Working Table 1930W MAX Raycus And JPT Fiber Laser Marking Machine With 200-200mm Working Table 2030W MAX Raycus And JPT Fiber Laser Marking Machine With 200-200mm Working Table 2130W MAX Raycus And JPT Fiber Laser Marking Machine With 200-200mm Working Table 2230W MAX Raycus And JPT Fiber Laser Marking Machine With 200-200mm Working Table 23

Specification: 30W MAX Raycus And JPT Fiber Laser Marking Machine With 200-200mm Working Table

Brand Name LCSPEAR
Condition New
Model Number Fiber marking machine
CNC or Not Normal
