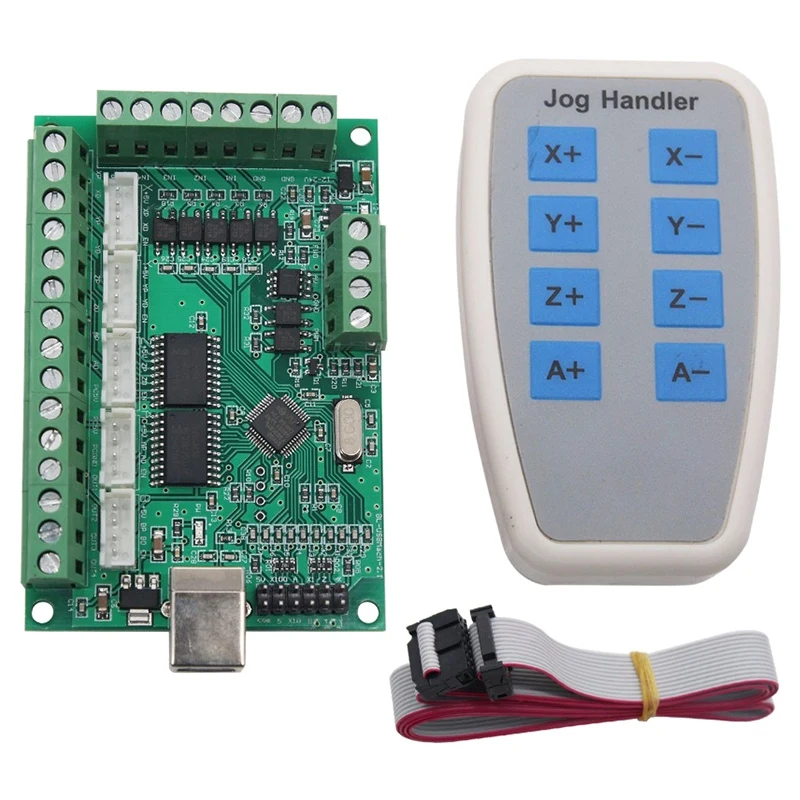

5 Axis Mach3 CNC Motion Controller Card Made With Plastic Material

Description:

We offer a discount for large quantities. Welcome to contact with us!

USB Interface; use MACH3 software; 5 axis rods; maximum output 100 KHZ per axis; with inverter interface; with hand wheel interface; strong anti-dysfunction ability.
Supports different versions of MACH3 software, supporting the latest version.
Supports Windows XP, WIN7, WIN8, WIN10, support 64-bit system, support laptop, support Tablet PC.
Peripheral wide voltage input, 12-24v, and anti-reverse function.
All input signals can be connected by optical coupling isolation, emergency stop, knife, limit, back to zero, to protect computer security.
A way through the opt coupler isolation 0-10v analog voltage output, the 0-10v analog voltage input frequency converter, can control the spindle speed.
Provide PWM output (5 v level), and can be connected to the spindle speed governor controlled by PWM.
Provide 4 output ports (5 v level), can be connected to the relay module with optical coupler, and control water cooling, spray, and so on.
It can be connected to the common anode or common cathode, the input level is 5v, with opt coupler input stepper motor driver.
At the same time, provide 5 axis interface wiring outlet (XH2.54), convenient connection.
Offer an electronic handwheel interface.
Easy to control and operate with a jog handler
Material: plastic
color: Photo Color
Package Contents:
1 * MACH 3 CNC Breakout Board
1 * Jog hand control board
1 * hand control board line
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.



5 Axis Mach3 Cnc Motion Controller Card Made With Plastic Material 6

5 Axis Mach3 Cnc Motion Controller Card Made With Plastic Material 7

5 Axis Mach3 Cnc Motion Controller Card Made With Plastic Material 8

5 Axis Mach3 Cnc Motion Controller Card Made With Plastic Material 9

5 Axis Mach3 Cnc Motion Controller Card Made With Plastic Material 10

5 Axis Mach3 Cnc Motion Controller Card Made With Plastic Material 11

Specification: 5 Axis Mach3 Cnc Motion Controller Card Made With Plastic Material

CNC or Not Normal
Model Number MACH 3 CNC Breakout Board
Condition New
