8-Axle Octocopter Drone Kit With Electronic Retractable Landing Skid

Add your review

$1,022.85$1,095.92

$1,022.85$1,095.92

Folding propellerHobbywing 40A ESCJMT 40A ESC
Clear
Free Delivery

Get free shipping across the globe.

Affordable Pricing

Factory direct prices for maximum savings

Premium Support

Pre & Post Sales customer support

Have Any Question for Us?
Ask us and get response for any of your pre sales questions.

8-Axle Octocopter Drone Kit With Electronic Retractable Landing Skid

Pro 2.4G 10CH RC 8-Axle Octocopter Drone Tarot X8 Folding PIX PX4 M8N GPS ARF/PNF DIY Unassembled Kit Motor ESC
Product is DIY Version, Unassembled Kit, and NO Manual, Please take it into account before ordering.
Our technicist will help the client to weld some wiring for ESC and we will test all electronic parts before shipment.
If any Technical questions, Please message us but do not open dispute or leave negative feedback.
3 Versions optional, The different devices are the Configuration of ESC and Propellers.
1) Hobbywing XRotor Pro 40A ESC No BEC + Tarot 3K Pure Carbon Props Set 1555 TL2812 Propeller ;
2)40A Brushless ESC Speed Controller + Tarot 3K Pure Carbon Props Set 1555 TL2812 Propeller.
3) Hobbywing XRotor Pro 40A ESC No BEC + Tarot TL100D03 Folding Forward CW CCW Plastics Propeller + Tarot TL100B15 Aluminum Alloy Folding Propeller Holder Clamp
Note: The item does not include Battery!
We recommend that client to ready the 14.8-22.2 V, 4-6 S, 12000-20000mAH batteries

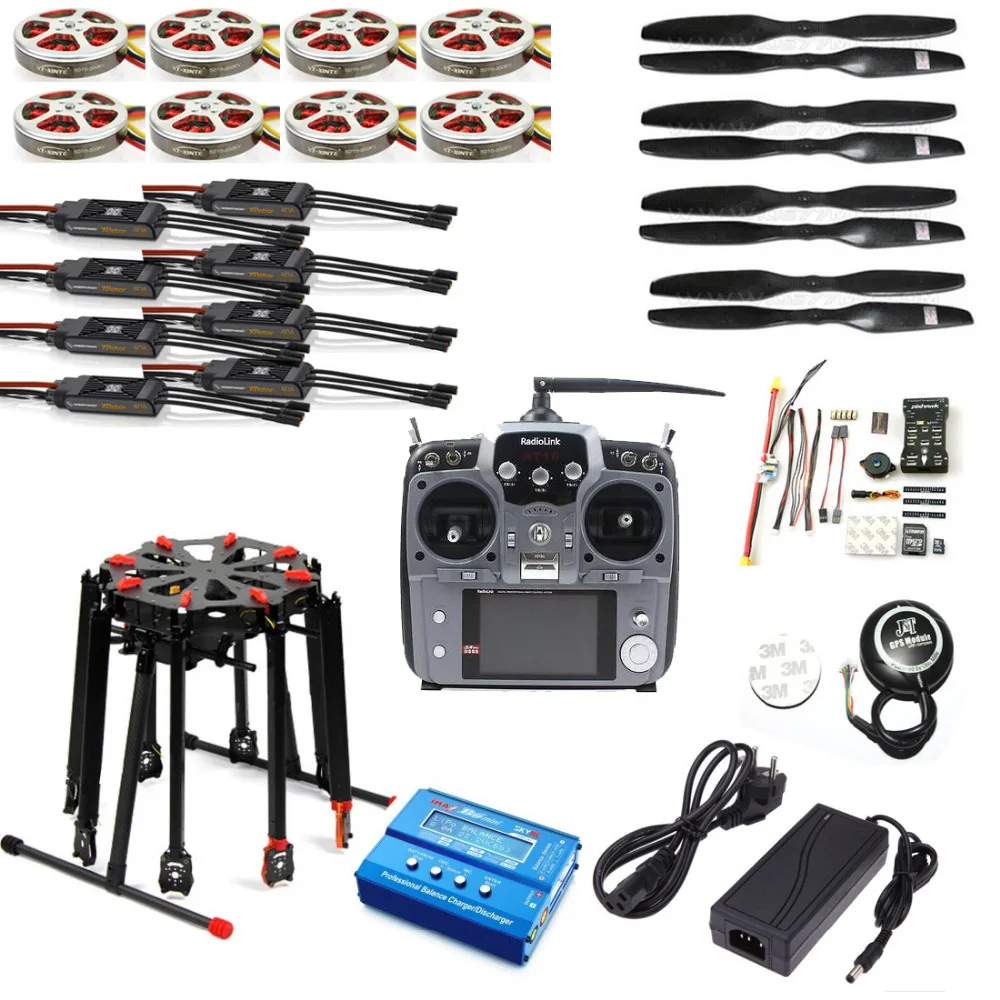

Package listing:
1x Tarot X8 TL8X000 8 axle Octocopter Umbrella Type Folding Frame with Electronic Retractable Landing Skid
8x 350KV Brushless Disk Motor high Thrust With Mount

4x Tarot 3K Pure Carbon Props Set 1555 TL2812 Propeller OR Tarot TL100D03 Folding Forward CW CCW Plastics Propeller + Tarot TL100B15 Aluminum Alloy Folding Propeller Holder Clamp
8x Hobbywing XRotor Pro 40A ESC No BEC (Hobbywing 40A ESC set) OR JMT 40A ESC (JMT 40A ESC set)

1x Pixhawk PX4 Autopilot PIX 2.4.8 Flight Controller 32 Bit ARM

1x Mini M8N GPS Module NEO-M8N GPS
1x RadioLink AT10 2.4Ghz 10CH RC Transmitter with R10D Receiver
1x SKYRC Imax B6 60W Mini Professional Balance Charger
1x 12V5A AC 100-240V Converter Adapter (US/AU/UK/EU Plug optional)

​1x Tool Set (Bag)

Frame:

Product Specifications:
Symmetric Motor Wheelbase: 1050mm
Folding Propeller Specifications: 15 Inch
Arm Length: 416mm
Arm Weight: 106g
Centre Plate Diameter: 338mm
Undercarriage Clearance Height: 391mm
Battery Specifications: 15c, 22.2v, 10000-2000mha
6s Brushless Esc: 40a
Maximum Power Consumption: 4000w
Hover Power: 1500w (9.5kg)
Hover Time: 15min
Weight: 2250kg
total Weight: 2.7kg

ESC:

———————Hobbywing————————-

Item Name: Hobbywing XRotor-Pro-40A
Con.Current : 40A
Peak.Current (10s) : 60A
BEC: No
Lipo: 3S-6S
Parameter Option : DEO ( on/off )
Size and Weight :
Version A ( With Wire ) : 66×21.8x11mm ; 50g

1. Output: Continuous 40A, Burst 60A up to 10 Secs.
2. Input Voltage:Pentium-40A:2-6 cells lithium battery or 5-18 cells NiCd/NiMH battery.
3. BEC:Pentium-40A: 3A / 5V (Switch mode).
4. Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM. (BLM: Brushless Motor)
5. Size: 55mm (L) * 28mm (W) * 12mm (H).
6. Weight: Pentium-40A: 35g.

Motor:

1, the use of a hidden motor shaft design, more effective protection of the motor shaft.
2, the use of a new type of propeller design, performance is more stable, demolition is more convenient.
3, the use of the 0.2mm stator, the load temperature lower, increase inefficiency.
Excellent workmanship, quality assurance, energy saving high efficiency
KV:350 VK
Shaft diameters: 4 mm
Weight: about 105 g (with leads)

Remote Control System:
1.Frequency: 2.4GHz ISM band (2400MHz~2485MHz);
2.Modulation mode: QSPK;
3.Channel bandwidth: 5.0MHz;
4.Spread spectrum: DSSS;
5.Adjacent channel rejection: >38dBM;
6.Transmitter power: <100mW(PCB testing);<20dBm(3 meter air testing);
7.Operating Voltage: 8.6~15V;
8.Operating Current: <95mA;
9.Control distance: 800 meters ground;
10.Channel: 10 Channel,8~10 channel are customizable;
11.Compatible model: Include all 120 degree and 90 degree swashplate helicopter,all fix wing and glider,five flying model;
12.Simulator model: under the simulator

Flight Controller:

– Advanced 32 bit CortexM4 ARM high-performance processor, can run RTOS NuttX real-time operating system;- Integrated backup power supply and failure backup controller, the main controller can be safely switched to backup control;
– Provide redundant power input and fault transfer function;
– 14* PWM/ actuator output;
– Bus interface (UART, I2C, SPI, CAN);
– Provide automatic and manual mode;
– Color LED lamp;
– Multi-tone buzzer interface;
– Micro SD to record flight data;

Charger:

Operating voltage range: 11.0-18.0 Volt
Circuit power: Max .charge power 60W
Max .discharge power 5W
Charge current range: 0.1-6.0A
Discharge current range: 0.1-2.0A
Li Po/Li Fe/Li Ion Cells : 1-6S
NICD/NIMH cells: 1-15s
PB Battery voltage: 2V- 20V
Net weight: 233g
Dimensions: 10.2×8.4×2.9cm

Caution for the battery:
Don’t over-charge, or over-discharge batteries.
Don’t put it beside the high-temperature condition.
Don’t throw it into the fire.
Don’t throw it into water.

Version with HobbyWing 40A ESC with Carbon Fiber Propellers:

8-Axle Octocopter Drone Kit With Electronic Retractable Landing Skid 1

8-Axle Octocopter Drone Kit With Electronic Retractable Landing Skid 2

8-Axle Octocopter Drone Kit With Electronic Retractable Landing Skid 3

8-Axle Octocopter Drone Kit With Electronic Retractable Landing Skid 4

Version with JMT 40A ESC with Carbon Fiber Propellers:

8-Axle Octocopter Drone Kit With Electronic Retractable Landing Skid 2

8-Axle Octocopter Drone Kit With Electronic Retractable Landing Skid 4

Version with HobbyWing 40A ESC and Plastic Folding Propellers:

8-Axle Octocopter Drone Kit With Electronic Retractable Landing Skid 7

8-Axle Octocopter Drone Kit With Electronic Retractable Landing Skid 2

8-Axle Octocopter Drone Kit With Electronic Retractable Landing Skid 4

8-Axle Octocopter Drone Kit With Electronic Retractable Landing Skid 10

Specification: 8-Axle Octocopter Drone Kit With Electronic Retractable Landing Skid

Brand Name jmt
Aerial Photography No
Material Carbon Fiber
Remote Distance About 100 Meters
Dimensions Wheelbase:1050mm
Warning Please do not excessive discharge
Motor Brushless Motor
Model Number Pro 2.4G 10CH RC 8-Axle Octocopter Drone
Control Channels 10 Channels
Remote Control Yes
Package Includes Remote Controller
Charging Time About 120 Mins
Power Source electric
Age Range > 14 years old
State of Assembly Unassembled Kit
Flight Time About 10-20 Minutes
Features Shatter Resistant
