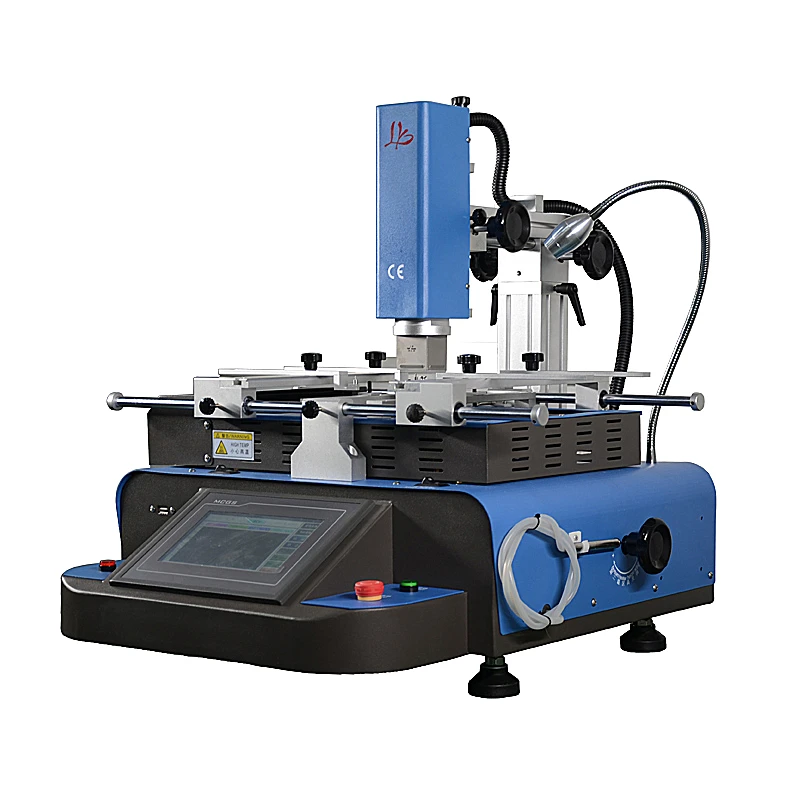

Automatic BGA Rework Station with K-type Thermocouple Closed-Loop Controlling for Motherboard Repair

Parameter:

Total Power

4800W
Upper Heating Power 800W
Lower Heating Power 1200W
Infrared Heating Power 2700W(1200W is controlled)
Power supply (Single Phase) AC 220V±10 50Hz
Location way V-shape card slot + Universal jigs
Temperature Controlling K-type thermocouple closed-loop control, independent temperature

control, precision up to ±3 degree

Electrical Material Touch screen + Temperature control module + PLC control
Max PCB size 400×370mm
Min PCB size 10×10mm
Sensor 1 unit
PCB Thickness 0.3-5mm
Suitable Chip Size 2*2mm-60*60mm
Machine Size 500×590×650mm
Weight Net 40kg

LY G580 BGA Rework station Feature :

1. Adopted with Linear slider, so all three axles (X, Y, and Z) can do a fine-tuning and quick orientation with perfect positioning accuracy and speedily maneuverability.
2. Equipped with a touch panel interface and PLC controlling to ensure it works stably and reliably. And it can store multiple temperature profiling data of users. With password protection and modification, function while power on. The temperature profiles will be displayed on the touch screen.
3. Three temperature zones to heat up independently, hot air heat up between up and down zones, IR heat in the bottom, temperature precise control is in±3℃. The upper-temperature zone can be moved freely according to needs, the second zone can be adjusted up and down. The top and bottom heaters can be set several segments control at the same time. IR heating zone can be adjusted output power in the light of operational requirements.
4. The hot air nozzle can be rotated in 360 degrees, the IR heater in the bottom can heat up the PCB board uniformly.
5. High accuracy K-type thermocouple closed-loop controlling. It can test temperature accurately through external temperature measurement interface, PCB board positioned by closed V-shape slot. The flexible and convenient universal jigs can prevent any damage or PCB deformation as well as it is suitable for all sizes of the BGA package.
6. Large power fan to cool down the PCB quickly. The built-in vacuum pump and external vacuum nozzle are able to take BGA chips out easily.
7. Having alarm prompt function after welding is done, especially added early warning function for convenient operation.
8. It has passed the CE certificate. It is equipped with an emergency stop switch and protection equipment to power off automatically when an abnormal accident happened. Under this situation that temperature is out of control, the circuit can automatically cut off the power with a double over-temperature protection function.

Automatic BGA Rework Station with K-type Thermocouple Closed-Loop Controlling for Motherboard Repair 1Automatic BGA Rework Station with K-type Thermocouple Closed-Loop Controlling for Motherboard Repair 2Automatic BGA Rework Station with K-type Thermocouple Closed-Loop Controlling for Motherboard Repair 3Automatic BGA Rework Station with K-type Thermocouple Closed-Loop Controlling for Motherboard Repair 4Automatic BGA Rework Station with K-type Thermocouple Closed-Loop Controlling for Motherboard Repair 5Automatic BGA Rework Station with K-type Thermocouple Closed-Loop Controlling for Motherboard Repair 6Automatic BGA Rework Station with K-type Thermocouple Closed-Loop Controlling for Motherboard Repair 7Automatic BGA Rework Station with K-type Thermocouple Closed-Loop Controlling for Motherboard Repair 8Automatic BGA Rework Station with K-type Thermocouple Closed-Loop Controlling for Motherboard Repair 9Automatic BGA Rework Station with K-type Thermocouple Closed-Loop Controlling for Motherboard Repair 10Automatic BGA Rework Station with K-type Thermocouple Closed-Loop Controlling for Motherboard Repair 11

Specification: Automatic BGA Rework Station with K-type Thermocouple Closed-Loop Controlling for Motherboard Repair

Brand Name LY
Model Number G580
is_customized Yes
Total Power 4800W
Upper Heating Power 800W
Lower Heating Power 1200W
Infrared Heating Power 2700W
Max PCB size 400*370mm
Min PCB size 10*10mm
