Breakpoint Locating Automotive Short and Open Circuit Tester with Flexible Probe for Wire Checking

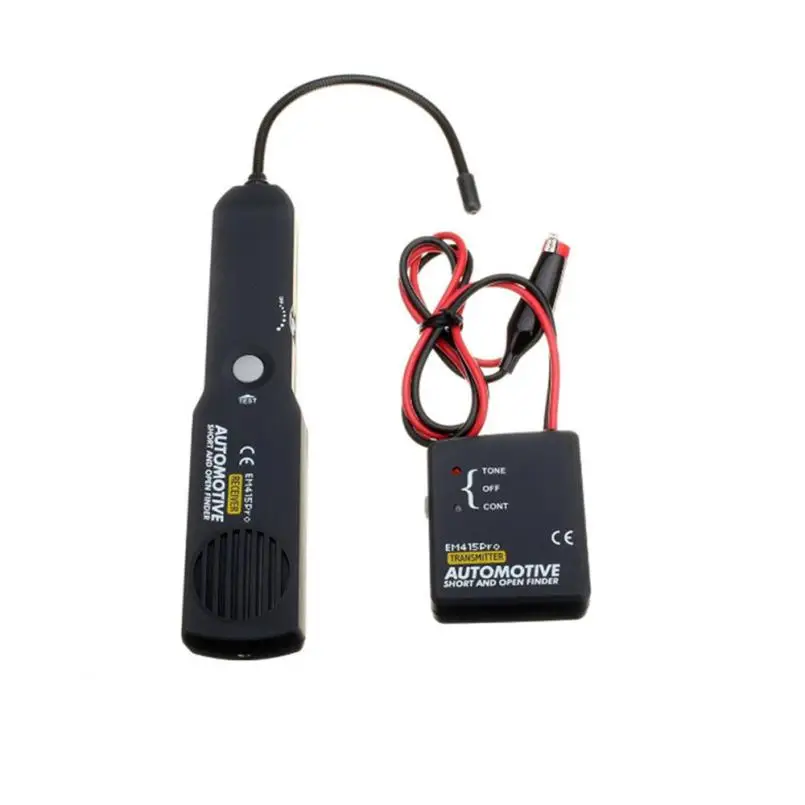

- This Automotive Short and Open Finder, car repair tool is designed to identify and trace wires or cables without damaging the insulation. You can also use it in checking for short circuits and locating open circuits and so on. Included in the set are Sender and a Receiver with a flexible thus, tracing wires made possible even inside bundles, conduits, behind panels, under carpets, upholstery, etc.
- Easy to use by just simply connect the transmitter in series with the circuit or wire under test, (i.e.: in place of a blown fuse, across a connector, in series with open wire, a light bulb socket, etc.), and scanning the circuit/wire with the tracers flexible probe to find the trouble spot.
- Reciever probe is built of coiled steel, can be bent in order to reach wires in congested areas.
- Operates on DC voltages from 9 to 42 volts
- Internally protected against power surges and overloads
- The flexible probe allows reaching wires in congested places
- Transmitter and Receiver LEDs show open or short circuit conditions
- Adjustable sensitivity for all tracing situations
- No wire piercing required, non-contact technology
- Colors: As the picture is shown
- Receiver Size(Length x Thickness x Height): about 21 x 4.5 x 2.5cm(8.27 x 1.77 x 0.98”)
- Sender Size(Length x Thickness x Height): about 5.5 x 6.5 x 2.3cm(2.17 x 2.56 x 0.91”)
- Wire Tracing
- Checking Short Circuit
- Locating Open Circuit
- Wire Identification
- On/Off button
- Test button
- Probe length: about 18cm(7.09”) flexible probe
- Tone/Off/Cont (Continuity) switch
- Tone/Cont (Continuity) LEDs
- Red and black test leads cable length about 60cm(23.62”) length
- Power: 9V battery (NOT Included)
- 1 x Automotive Short and Open Finder Sender
- 1 x Automotive Short and Open Finder Reciever
- 1 x Carrying Pouch
- 1 x English User Manual
- Due to the difference between different monitors, the picture may not reflect the actual color of the item.
- Please allow 1-5mm error due to manual measurement. Thanks！
