Digital Mini Infrared Thermal Camera Made With ABS Material For Measuring Tools

Features:
TFT Full View Color Screen: potential problems can be clearly displayed on the color display screen, which helps to locate the center point to measure the cursor and temperature quickly and accurately.
Resolution of Infrared Image/Visible Image: 1089 pixels/300,000 pixels.
Time-Saving: Dual MCU processors, combine the functions of surface temperature measurement and real-time thermal imaging, refresh faster, no need to measure each component one by one.
Hybrid Imaging of Visual and Infrared Images: equipped with a vision camera to improve recognition, which turns the thermal image into a visual image, quickly finds out the problem area.
Images Capture Saved in Storage Card: thermal image and visual image can be stored in the dismountable memory card(NOT included) for generating reports and printing.
Selectable Color Palette: ink color, black and white, rainbow color, ocean blue, iron red.
Hot/Cold Spot Marked: hot and cold point temperature markers guide users to the areas with the highest and lowest temperature in the thermal image.

Specifications:
Material: ABS
Temperature Range: -20~380°C / -4~716℉
Accuracy: >0°C, ±2% or reading ±2°C/3.6℉; <0°C, ±3°C/5.4℉ (measured in an environment of 18~28°C)
Infrared Image Resolution: 33*33 (1089 pixels)
Display Resolution: 240*320 pixels
Visual Image Resolution: 300,000 pixels
Field Angle: 32*32 degrees
Minimum Focal Length: 0.5m
Thermal Sensitivity: 0.15°C/0.27℉
Emissivity: 0.1~1.0 adjustable
Image Capture Frequency: 9Hz
Wavelength Range: 8~14um
Focus Mode: Fixed
Palette: Ink color, black and white, rainbow color, ocean blue, iron red
File Format: BMP
Storage: 8GB memory card(NOT included)
Memory View: Scroll all saved images and view them on the screen
Auto Power-off: 3 minutes, 5 minutes, or 10 minutes
Working Temperature: -5~40°C / 23~104℉
Storage Temperature: -20~55°C / -4~131℉
Relative Humidity: 10~80%RH
Power Supply: 4 * LR6 AA battery(NOT included) or USB power supply
Item Size: 193 * 92 * 52mm / 7.60 * 3.62 * 2.05in
Item Weight: 279g / 9.86oz
Package Weight: 689g / 24.31oz
Package Size: 24.6 * 15.6 * 8cm / 9.69 * 6.14 * 3.15in

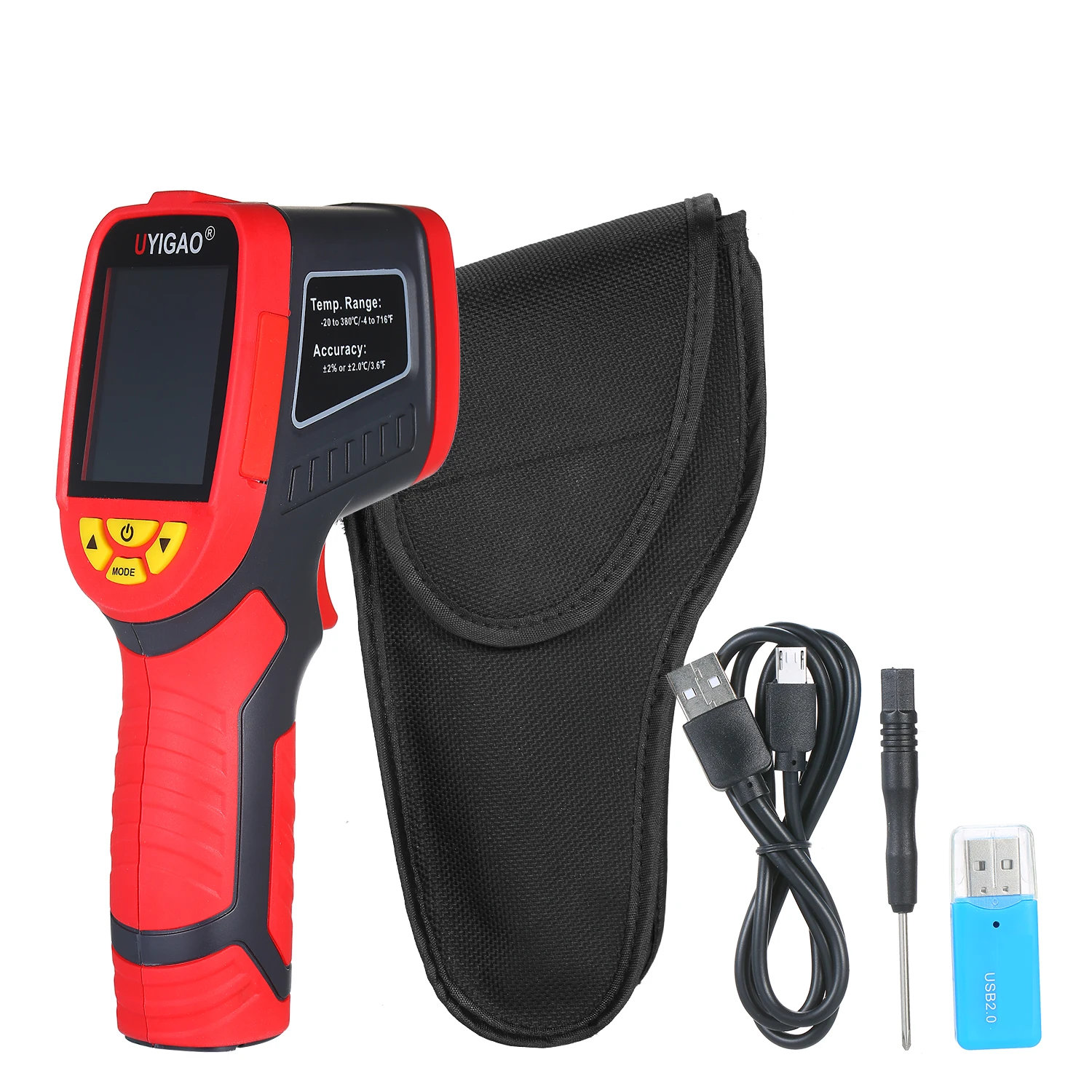

Package List:
1 * Thermometer
1 * Card Reader
1 * USB Cable
1 * Screwdriver
1 * Manual (English)



Digital Mini Infrared Thermal Camera Made With ABS Material For Measuring Tools 6

Digital Mini Infrared Thermal Camera Made With ABS Material For Measuring Tools 7Digital Mini Infrared Thermal Camera Made With ABS Material For Measuring Tools 8Digital Mini Infrared Thermal Camera Made With ABS Material For Measuring Tools 9Digital Mini Infrared Thermal Camera Made With ABS Material For Measuring Tools 10Digital Mini Infrared Thermal Camera Made With ABS Material For Measuring Tools 11Digital Mini Infrared Thermal Camera Made With ABS Material For Measuring Tools 12Digital Mini Infrared Thermal Camera Made With ABS Material For Measuring Tools 13Digital Mini Infrared Thermal Camera Made With ABS Material For Measuring Tools 14Digital Mini Infrared Thermal Camera Made With ABS Material For Measuring Tools 15Digital Mini Infrared Thermal Camera Made With ABS Material For Measuring Tools 16

Specification: Digital Mini Infrared Thermal Camera Made With ABS Material For Measuring Tools

Brand Name meterk
Theory Infrared Thermometer
Model Number Thermal Imager
Max Measuring Temperature 120°C & Above
Display Type Digital
Usage indoor
Power Type Other
Style Handheld
Display Size 1.9 Inches & Under
