Optical Fiber Breakpoint Detector to Detect the Location and Type of Optical Fiber Using the OTDR Element

Optical Fiber Breakpoint Detector to Detect the Location and Type of Optical Fiber Using the OTDR Element

Product Description :

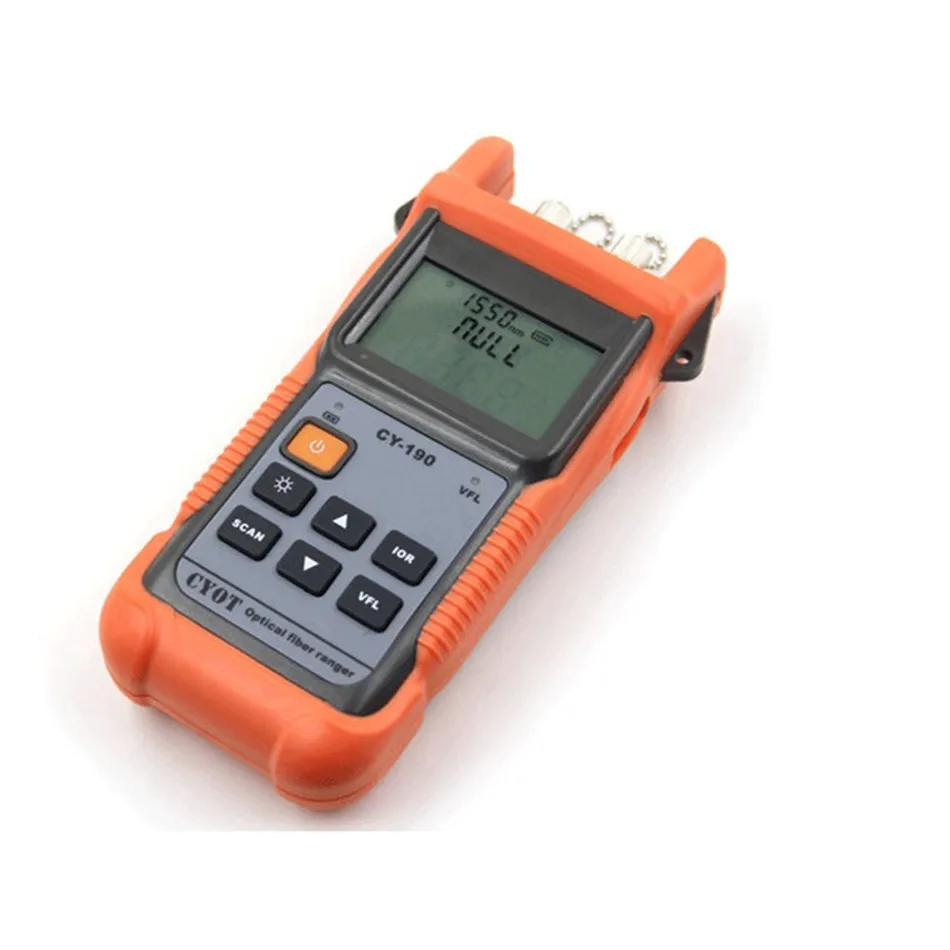

Optical Fiber Ranger CY190S / Visual Fault Locator

Optical fiber Ranger CY190S is a portable file fiber locator, you can quickly detect the location and type of optical fiber using the OTDR element and a higher quality analysis ware tool.

Features :
· Lightweight, portable, economical
· One work key, collapsible test data
· Integrated with a visual troubleshooting system, it is easy to detect the location of the dead zone malfunction
· Use a rubber key, good flaming, waterproof, wear-resistant ability, suitable for fieldwork
· Use of large capacity battery, long work time, suitable for long time fieldwork
· Suitable for engineering and maintenance of FTTx faults and access network

Key Function :
· Test fiber length, fault location detection
· Test port distance to the fiber port
· Check fiber status after repair

Specifications

A type-CY190S

Light source: 1310 or 1550nm

Fiber type – 9 / 125um Single-Mode Optical Fiber

Type of Interface: FC / PC, SC / PC

Type of Sensor: InGaAs

Peak laser value > = 60 MW

Maximum Display Range Reflection Developments :60 km (> = 1 dB)

Reflection Developments: 20 km (> = 2.5 dB)
