TBK-578 Laminating Frozen Separating Machine/LCD Freezing Separator

TBK-578 Laminating Frozen Separating Machine/LCD Freezing Separator 6TBK-578 Laminating Frozen Separating Machine/LCD Freezing Separator 7TBK-578 Laminating Frozen Separating Machine/LCD Freezing Separator 8

Specification:

1. Suitable for all tablets, smartphone cracked LCD under 14-inch separating
2. OLED curved screen glass separation is workable as well
3. Separator temperature : – 130 — – 185 degree=
4. Around 15 minutes to get the low temperature
5. Put LCD screen on the cooling plate for around 1 — 2 mins, then you can use a plastic card to help to separate the cracked glass
6. 220V / 110V are both available

Details:

ItemLCD freezer Machine, just connect with power, no need liquid nitrogen
Model LY/TBK – 578
Function To remove the front glass more easily
Application For all phone screens, like for iPhone, Samsung, LG, HTC, etc. Also with curved OLED Screen
Voltage 220V/ 110V /800W
Fast DeliveryShip within 3 working days after payment received
TemperatureUp to – 185 degree lowest temperature
Gross Weight50kg
Warranty2 years
Plate size25*19cm
Package Wood Box

TBK-578 Laminating Frozen Separating Machine/LCD Freezing Separator 9TBK-578 Laminating Frozen Separating Machine/LCD Freezing Separator 10

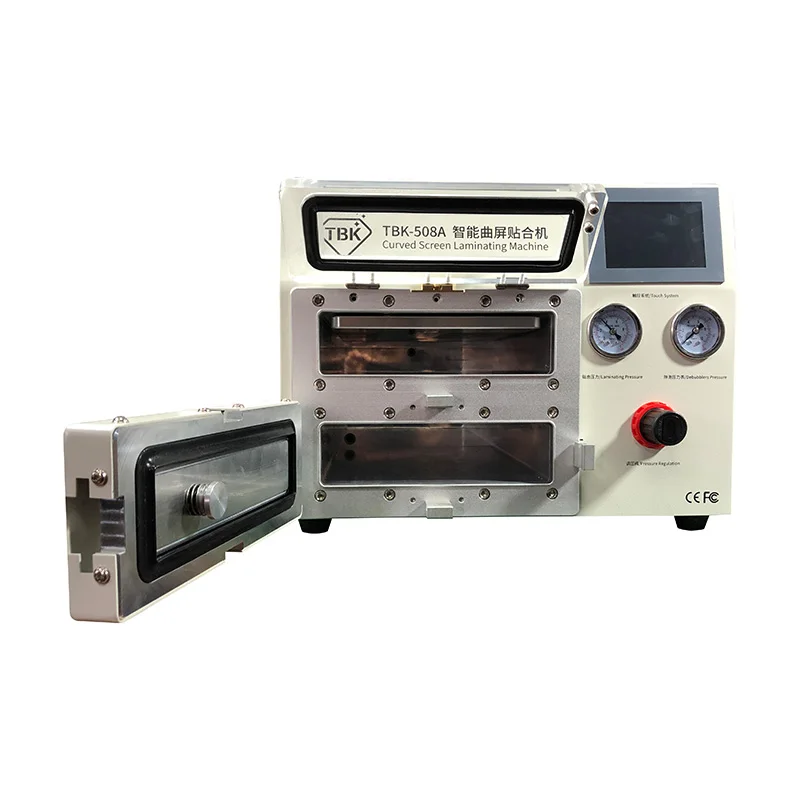

Model:508A

Power:800W

Machine size:400*410*300mm

Package size:510*480*440mm

Package type: Polywood case

Gross weight:41KG

Net weight:35KG

Debubble cabinet size:190*290*50mm

Laminate cabinet size: 190*290*50mm

Max pressure:7KG

TBK-578 Laminating Frozen Separating Machine/LCD Freezing Separator 11TBK-578 Laminating Frozen Separating Machine/LCD Freezing Separator 12

TBK-578 Laminating Frozen Separating Machine/LCD Freezing Separator 13

Feature:

1.Universal laminating machine with touch screen, for flat curved tablet screens LCD.
2. Curved molds use a short base, save space maxly, abandon high foot case design completely.
3. Big pressure, laminate & de-bubble can work in the same time.

Packing List:

S7 note8 S8 S9+ Moulds x 1( 4 Sets)
LY-508A machine x 1
Power cable x 1

If you need more molds please contact us

Packing List:

Single Kit:

LY/TBK-578 X 1 (220V or 110V)
LY/TBK 508A x 1 (220V or 110V)
Separator sheet x 100 pcs
Mobile open kit 23 in 1 x 1
Glove x 10 pairs

TBK-578 Laminating Frozen Separating Machine/LCD Freezing Separator 14TBK-578 Laminating Frozen Separating Machine/LCD Freezing Separator 15TBK-578 Laminating Frozen Separating Machine/LCD Freezing Separator 16TBK-578 Laminating Frozen Separating Machine/LCD Freezing Separator 17TBK-578 Laminating Frozen Separating Machine/LCD Freezing Separator 18TBK-578 Laminating Frozen Separating Machine/LCD Freezing Separator 19TBK-578 Laminating Frozen Separating Machine/LCD Freezing Separator 20TBK-578 Laminating Frozen Separating Machine/LCD Freezing Separator 21TBK-578 Laminating Frozen Separating Machine/LCD Freezing Separator 22TBK-578 Laminating Frozen Separating Machine/LCD Freezing Separator 23TBK-578 Laminating Frozen Separating Machine/LCD Freezing Separator 24TBK-578 Laminating Frozen Separating Machine/LCD Freezing Separator 25TBK-578 Laminating Frozen Separating Machine/LCD Freezing Separator 26

Specification: TBK-578 Laminating Frozen Separating Machine/LCD Freezing Separator

Brand Name NoEnName_Null
DIY Supplies Electrical
Model Number TBK-578/TBK 508A
is_customized Yes
Package Box
Separator temperature - 130 --- - 185 degree
modle TBK-578/TBK 508A
type LCD freezing Separator laminating frozen separating Machine
use OCA LCD
Voltage 220V / 110V 800w
Function To remove the front glass more easily
Application For all phone screen
Temperature Up to - 185 degree lowest temperture
Plate size 25*19cm
certification CE ISO
