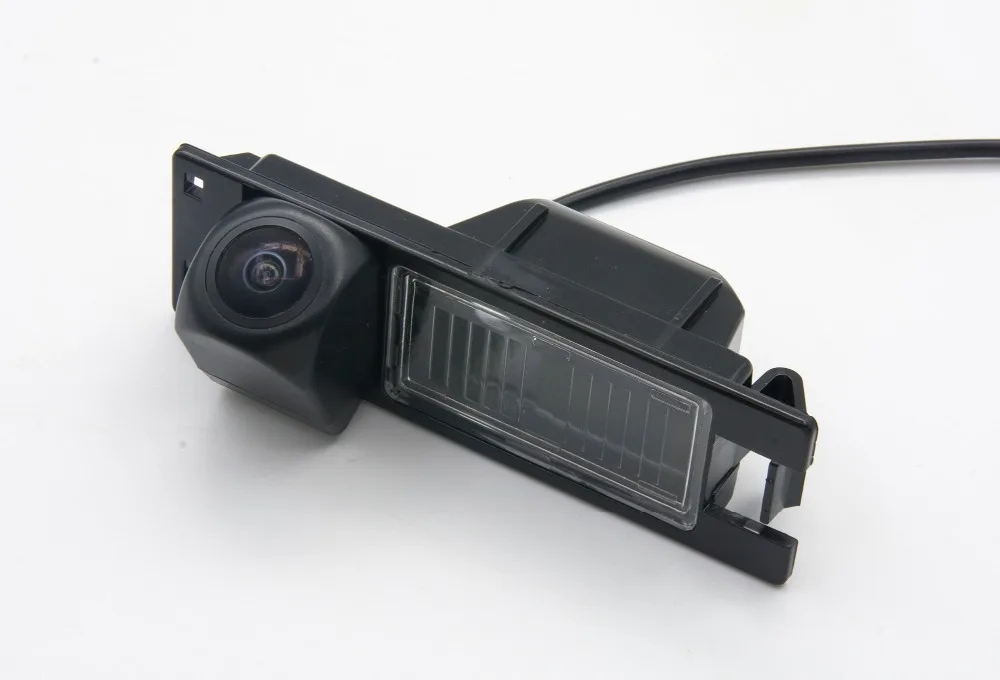

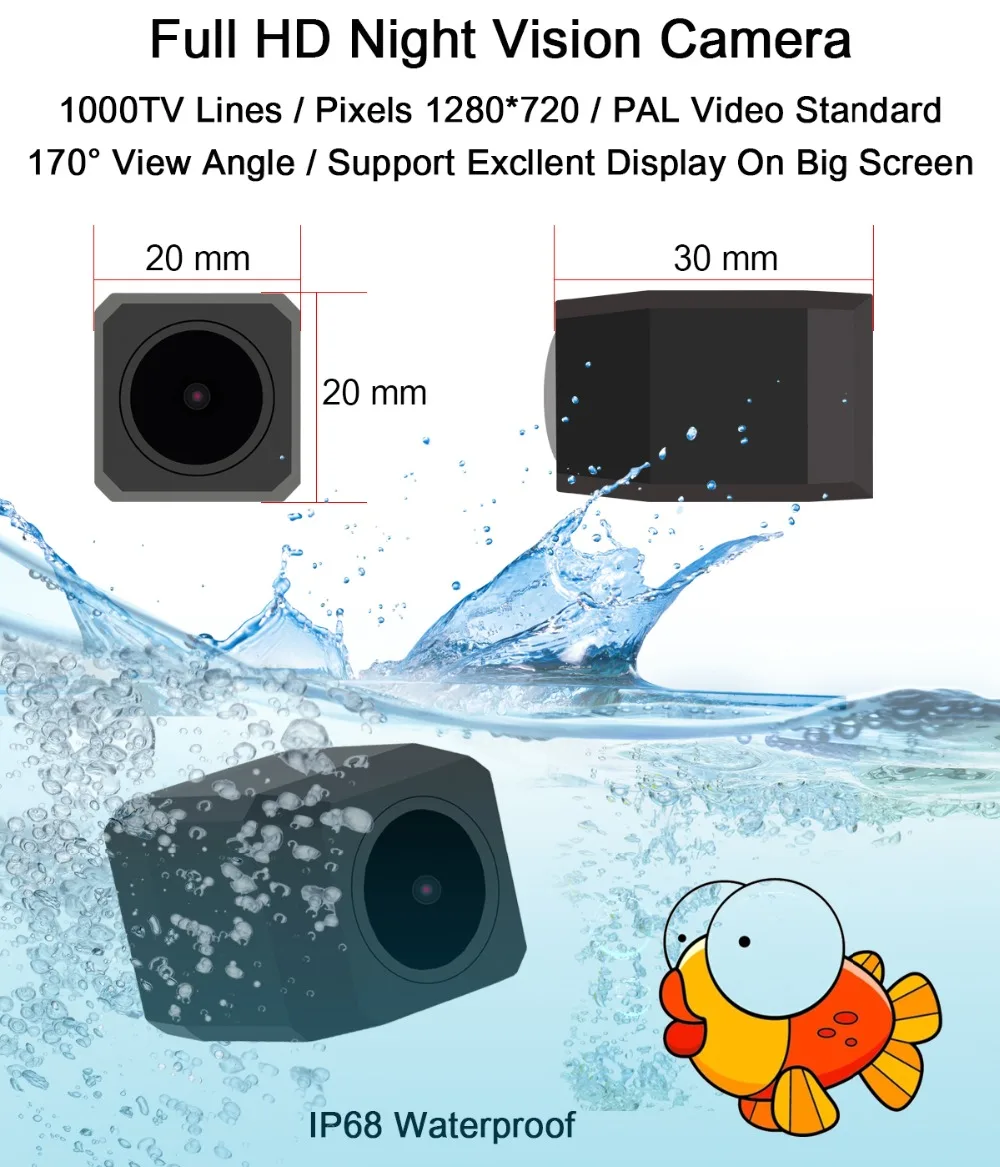

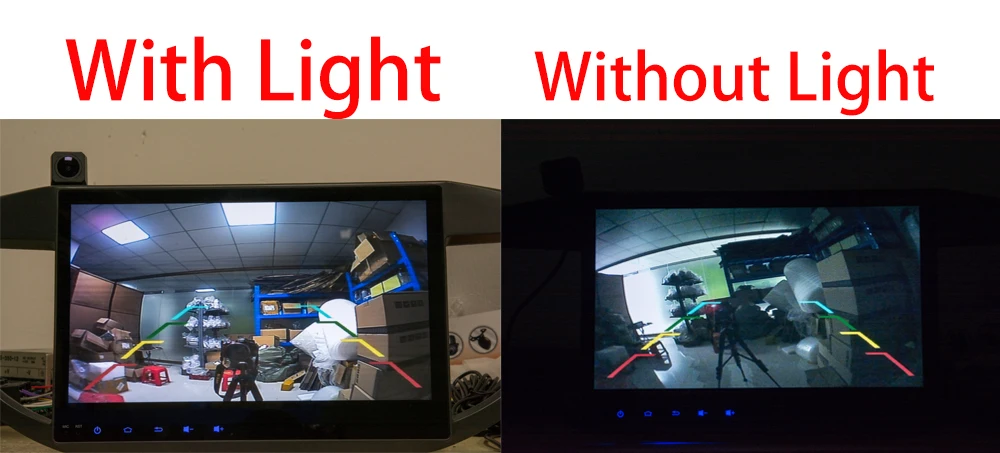

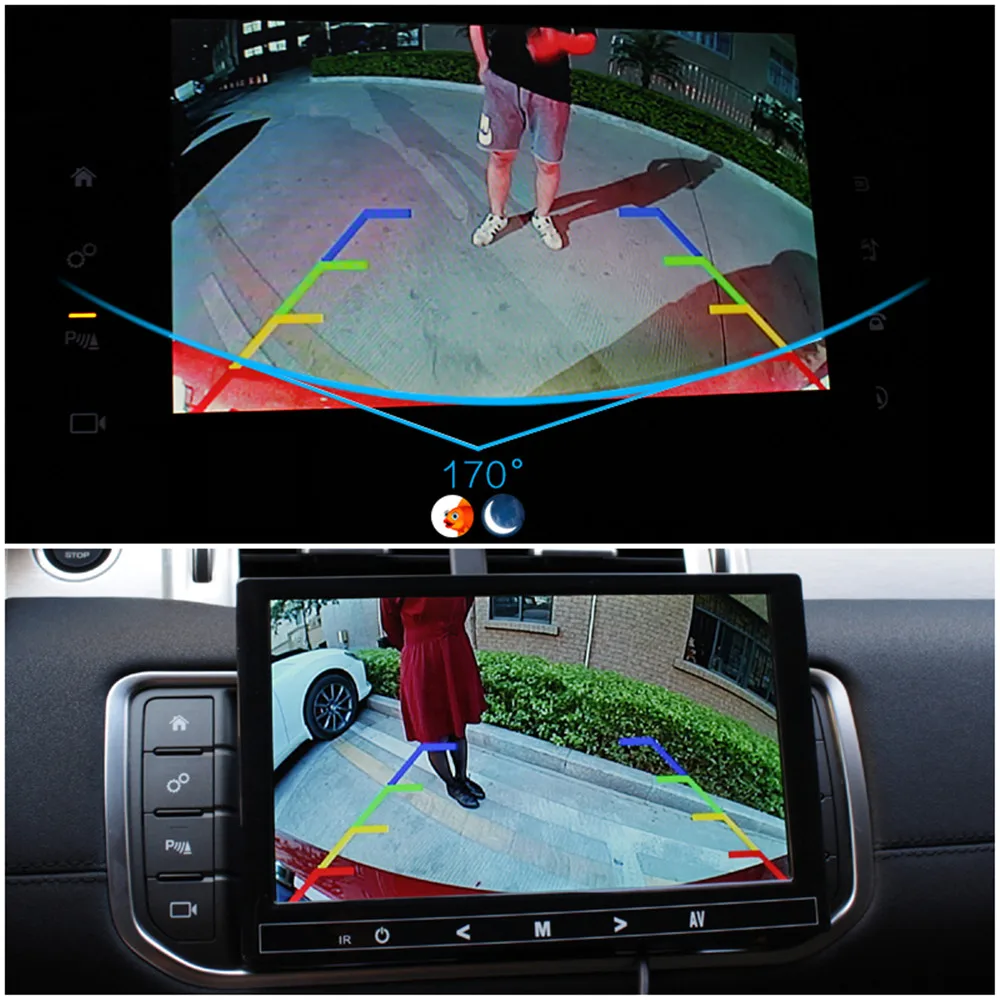

Waterproof Car Rear View Camera with Full HD Night Vision Camera and 170 Degree view Angle
For Opel Astra J GTC Astra K GTC 5D hatch 2009~2019 For Opel Combo D 2011~2018
For Chevrolet Volt 2011~2018
For Buick Velite 5 2011~2018
For Opel Ampera for Vauxhall Ampera 2011~2018
For Holden Volt 2011~2018
For Chevrolet Meriva (South America) Vauxhall Meriva (United Kingdom) 2003~2012
For Fiat Doblo 263 for fiat Panorama for fiat Doblo Classic
For Opel Astra H J Corsa D Meriva A Vectra C Zafira B FIAT Grande
For Opel Insignia Buick Regal 2010 2011 2012 2013
Image Sensor: New Starlight High-Quality Full HD PC1058 Sensor
Signal System: PAL（Default）
Resolution:1000 TV lines (Enhanced) 1280*720 Pixels
Min. Illumination:0.1 Lux
Video Output:RCA, 1.0 Vpp composite video at 75ohms
Working Voltage:12V DC
Work Environment:-30 °C~ +80 °C, Rh 95% Max
Power Consumption:100mA
Active Power:≥1W

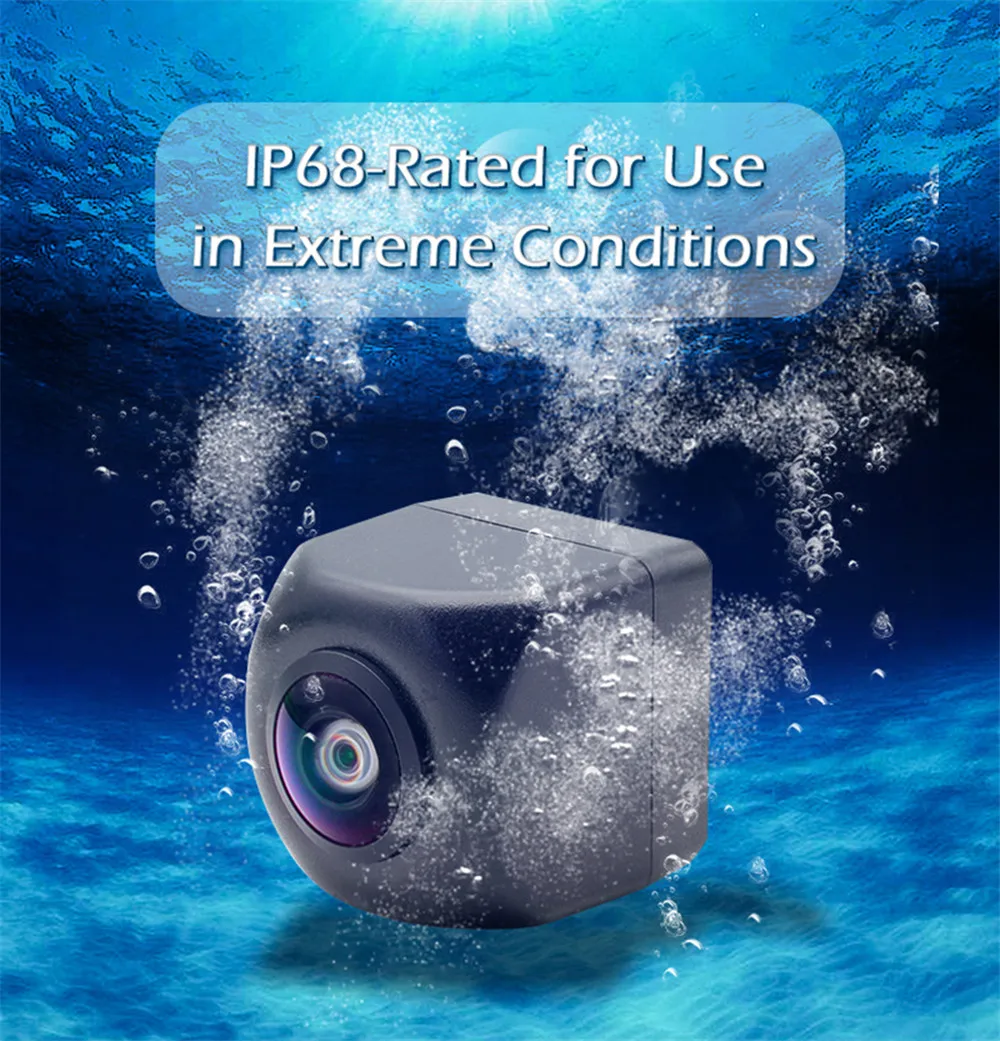

Waterproof Grade: IP68 (Protected against ingress of dust and effect of immersion less than 1 meter depth.)
Special Function: Auto White Balance, AGC, Backlight Compensation.Excellent Display On Big Screen
Important note:

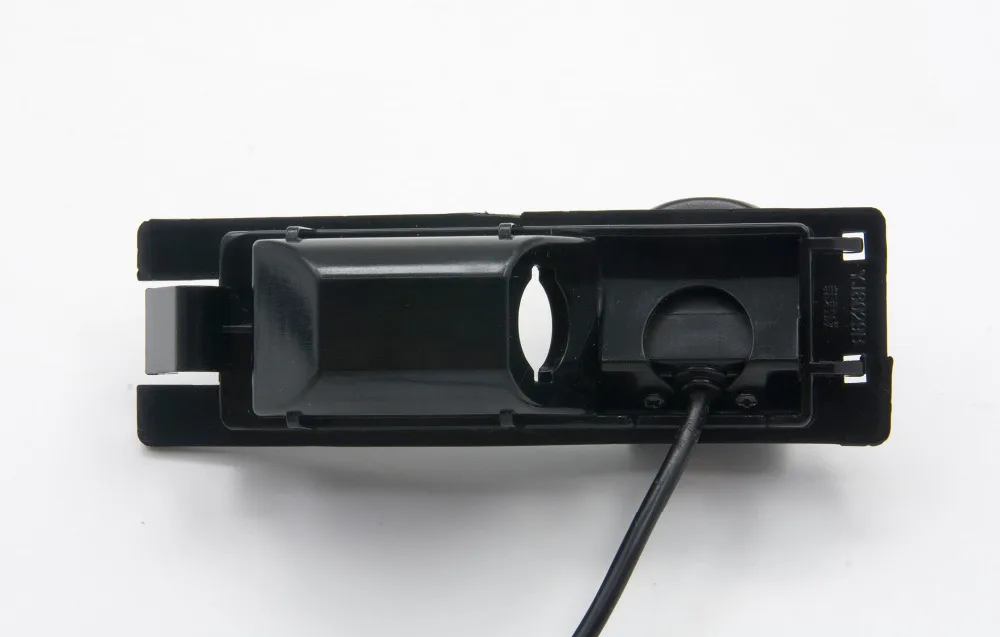

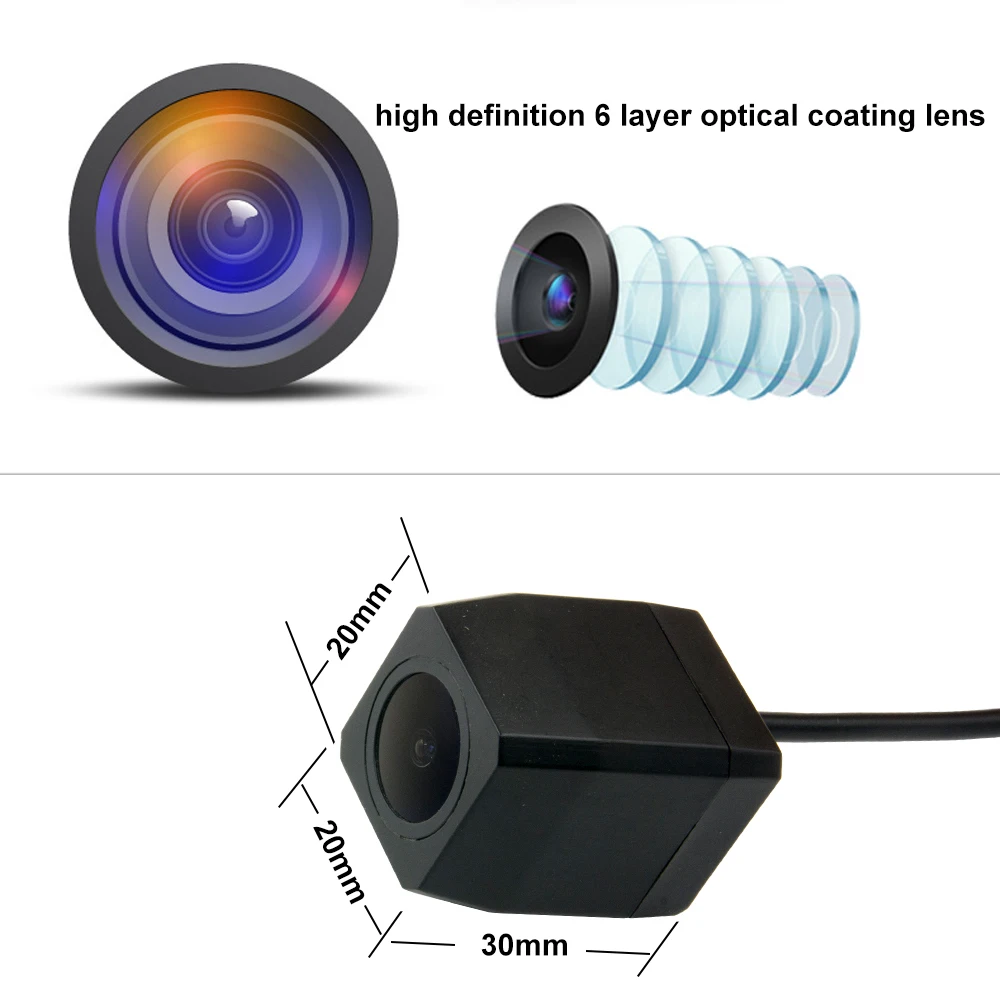

Dear customer! Please MUST check the camera size photos, see if can fit your car license plate lamp place!
This type of camera will compatible with the following vehicles models(Just as a reference, please check your license plate lamp place size, make the final confirmation )
For Opel Astra H J Corsa D Meriva A Vectra C Zafira B FIAT Grande
For Opel Insignia Buick Regal 2010 2011 2012 2013
Image Sensor: New Starlight Night Vision FishEye Lens MCCD PC3809 Sensor
Signal System: NTSC（Default）
Resolution:1000 TV lines (Enhanced) 1280*720 Pixels
Min. Illumination:0.1 Lux
Video Output: RCA, 1.0 Vpp composite video at 75ohms
Working Voltage:12V DC
Work Environment:-30 °C~ +80 °C, Rh 95% Max
Power Consumption:100mA
Active Power:≥1W
Waterproof Grade: IP68 (Protected against ingress of dust and effect of immersion less than 1-meter depth.)
Special Function: Auto White Balance, AGC, Backlight Compensation.Excellent Display On Big Screen
Important note:
Dear customer! Please MUST check the camera size photos, see if can fit your car license plate lamp place!
This type of camera will compatible with the following vehicles models(Just as a reference, please check your license plate lamp place size, make the final confirmation )
Image Sensor: New Intelligent Dynamic Trajectory Tracks Fisheye Lens High-Quality PC3089 Sensor
Signal System: NTSC（Default）
Resolution:1000TV lines (Enhanced) 1280*720 Pixels
Min. Illumination:0.1 Lux
Video Output:RCA, 1.0 Vpp composite video at 75ohms
Working Voltage:12V DC
Work Environment:-30 °C~ +80 °C, Rh 95% Max
Power Consumption:100mA
Active Power:≥1W
Waterproof Grade: IP68 (Protected against ingress of dust and effect of immersion less than 1-meter depth.)
12V Power Filters:
Description:
Some models of German cars and American cars are, after engine start, output voltage interferences, power supply to the reversing lights are not pure DC power supply, but a pulse signal is superimposed on a top oscilloscope can be used to test if the conditions will It found a similar square wave signal. Camera power supply line directly on the downlights, because the working voltage is very unstable cause the camera does not work properly, the video signal output is also not normal, so the host can see there is a severe interference, jitter, or not to switch reversing the screen.

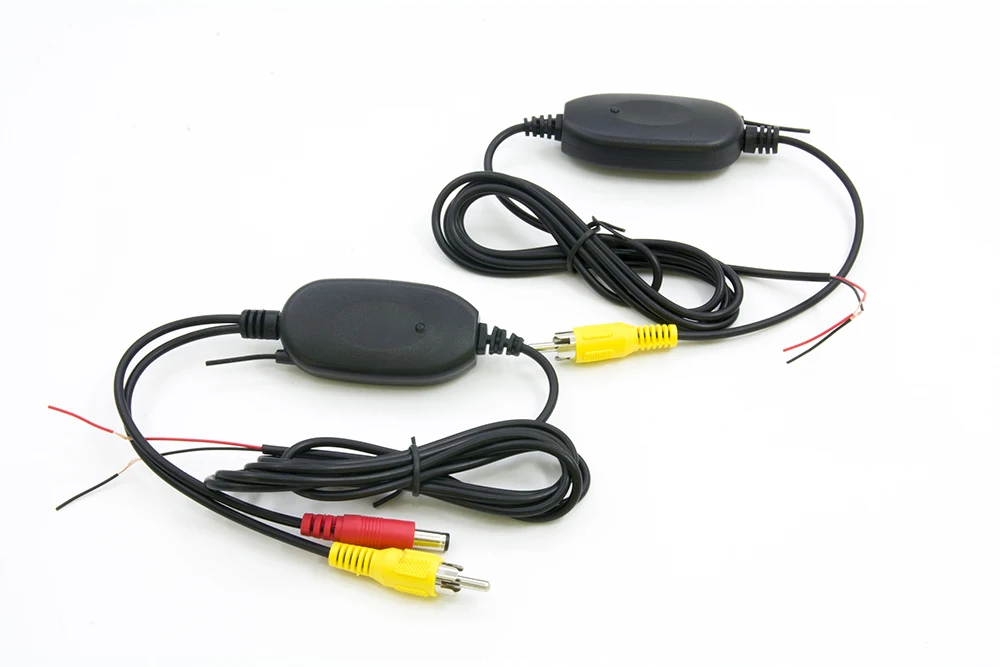

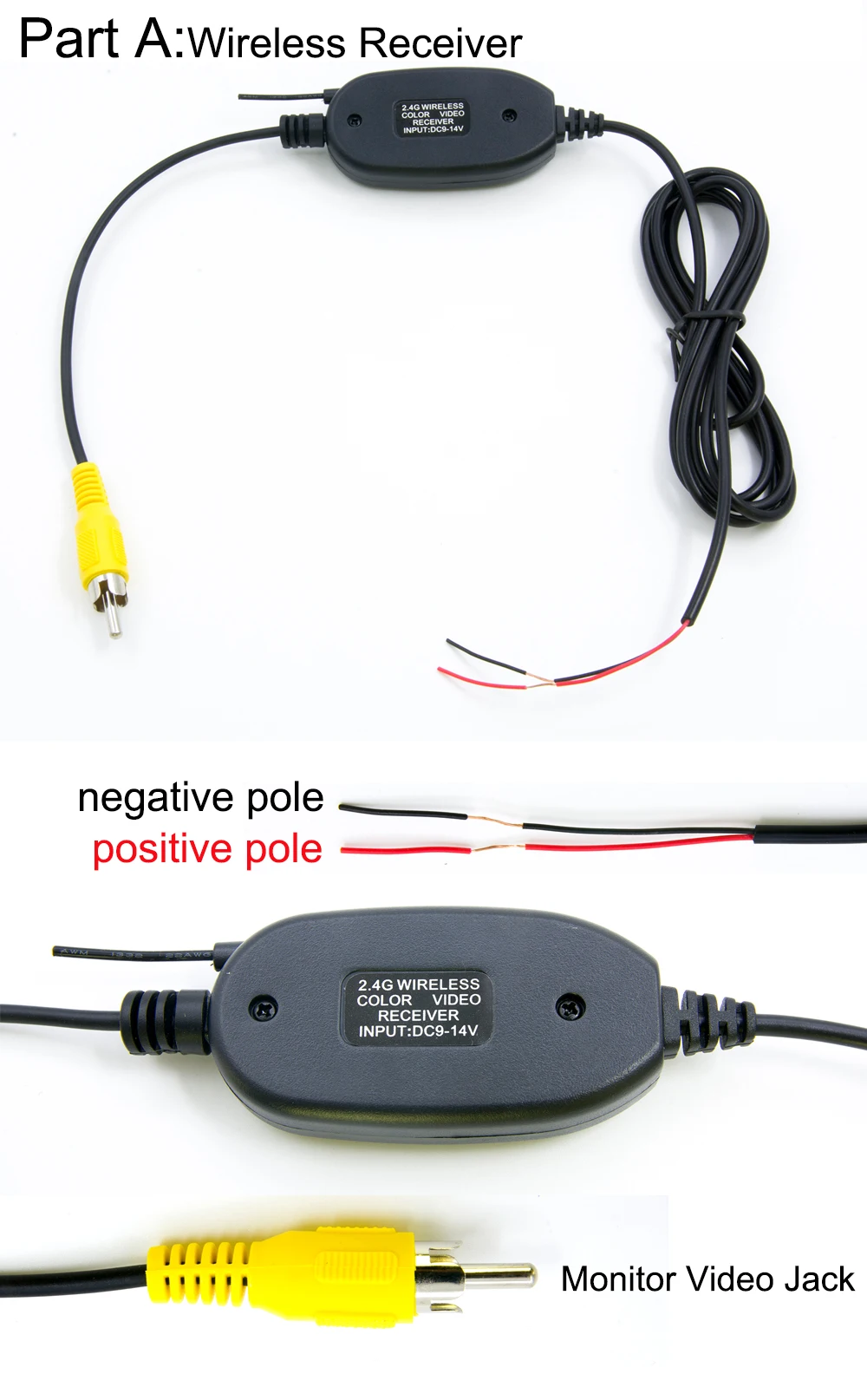

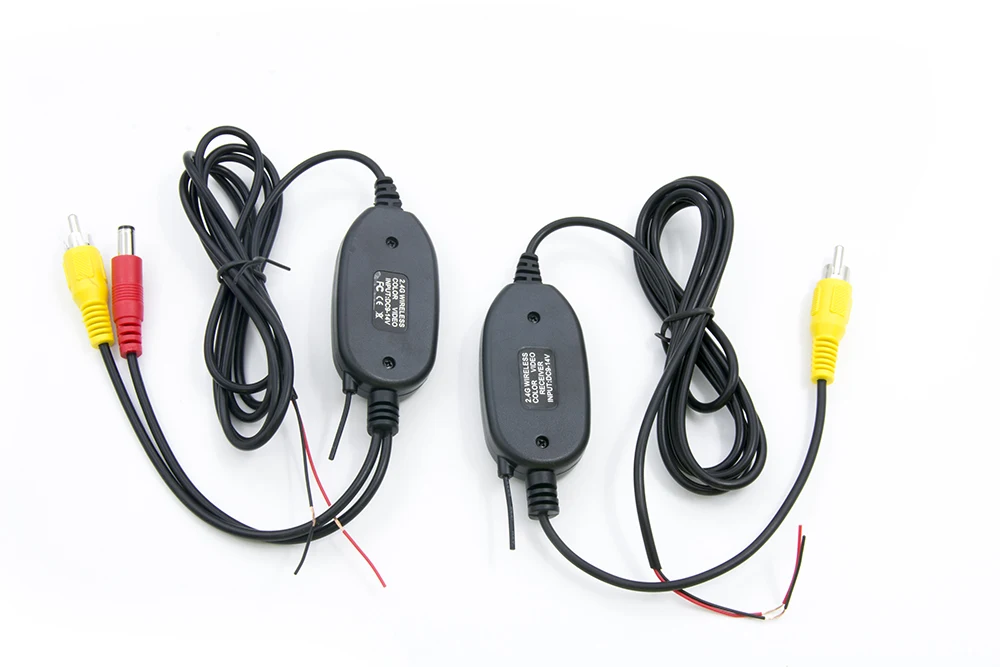

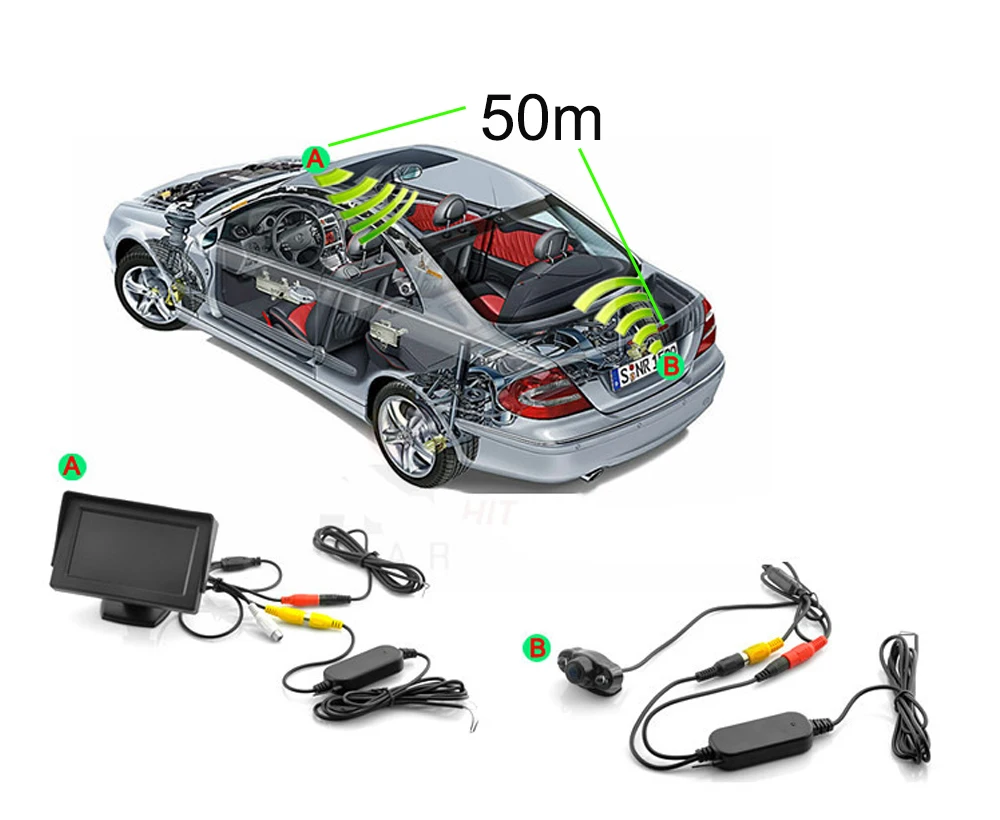

2.4 Ghz Wireless Video Transmitter Receiver Kit:
